Revolutionary Rotating Floor Building: AI-Aided Design Idea Unveiled!

Introduction

The Dynamic Rotating Floor Building, a concept that promises to transform urban living, was conceived from a deep analysis of architectural needs tailored to modern lifestyles, particularly the desire to maximize views and adapt to varying weather patterns. This innovative building design allows each floor to rotate independently, giving residents control over their exposure to natural elements and altering their urban vistas in a seamless dance of architecture and nature. The blog unveils a Dynamic Rotating Floor Building that integrates architectural design with rotating floors, optimizing natural light and enhancing energy efficiency.

Disclosure: I began my academic journey studying architecture in college, a pursuit driven by my passion for design and building spaces. However, after two years, I decided to take a different path that led me to join Apple. This pivot was not a departure from design but a transition into a new realm of creativity—software development and architecture. Interestingly, I was introduced to the concept of Design Patterns way before it became practical in software. While my formal architectural education was not completed, the design principles I embraced during those foundational years continue to influence my work in technology and software, blending the boundaries between physical and digital design spaces.

Conceptual Evolution

The initial idea stemmed from my own experiences in customizing my office space. I placed my workstation centrally, surrounded by whiteboards and bookshelves, all accessible within a 360-degree turn and directly located below a skylight. This setup, free from the clutter of visible wires with plenty of natural lighting, sparked the idea of a building where each floor could offer similar accessibility and freedom—extending the concept of central, accessible design to a larger architectural scale.

While refining the design, I sought a way to enhance mobility and access across each floor’s space efficiently. During this phase, the design started to resemble the concept of a lazy Susan, but with individually moving plates, becoming a crucial element that surfaced through iterative design processes. This rotational mechanism effectively addressed the challenge of quick and easy access to different parts of each floor, from open courts to terraces, encouraging a fluid living and working environment.

Design Integration and Inspiration

The core of the building functions as the hub for essential services, reminiscent of the centralized setup in my office. This design supports the building’s structural integrity and simplifies the integration of utilities, which connect through the core to each rotating floor. My considerations of a centrifugal design for remote workspaces inspired me, particularly in scenic, less urbanized areas like mountain regions. Imagine a 360-degree view that could change at will. The concept was applied here to create communal workspaces at the center, surrounded by private quarters, facilitating community interaction and personal privacy.

Applicable Alexander Design Patterns:

My design aligns several of Alexander’s patterns with aspects of its design:

  1. Pattern 159: Light on Two Sides of Every Room: This pattern emphasizes the importance of having natural light from at least two directions in every living space. Your design allows for varying the direction and amount of natural light by rotating each floor, giving residents control over light exposure throughout the day.
  2. Pattern 125: Stair Seats: Incorporating seating areas around staircases enhances their functionality and makes them more than just transitional spaces. In the context of our building, areas around the elevator shaft or other access points in the central core could be designed to serve as communal spaces or rest areas, enhancing interaction and usability.
  3. Pattern 162: North Face Entrance: This pattern concerns the positioning of the main entrance to minimize energy loss and protect against harsh weather. Since our building rotates, the design could incorporate adaptive entrance features that adjust based on orientation and environmental conditions.
  4. Pattern 182: Self-governing Workshops and Offices: This pattern suggests that workspaces should be autonomous and governed by the people who work in them. The design of each rotating floor could be modular and customizable, allowing residents to tailor their spaces to their work or living needs, supporting a sense of autonomy and personalization.
  5. Pattern 159: Light on Two Sides of Every Room: Ensuring rooms have light from multiple sides can significantly enhance a space’s ambiance and energy efficiency. This can be dynamically managed in a rotating building, offering unique and varying lighting conditions that adapt throughout the day.
  6. Pattern 190: Ceiling Height Variety: This pattern stresses the importance of varying ceiling heights to suit different room uses and promote a sense of space. While the overall structure might be uniform, individual floor designs could incorporate this pattern through raised or lowered sections, adding architectural interest and functional space differentiation.
See also  A "Dumb and Dumber" Sequel: Commanders-in-Chief

Technological and Material Innovations

The project necessitated pioneering engineering solutions and advanced materials to realize this architectural vision. The floors are supported by a sophisticated bearing system that ensures smooth rotation and balance, which is essential for the safety and comfort of the residents. Smart technology integrated into the building’s control systems allows floors to rotate based on preset conditions or at the command of residents, adapting to weather changes or personal preferences for sunlight and breeze.

Future Visions

Looking forward, the Dynamic Rotating Floor Building is more than just an architectural idea; it is a foundational concept that can be adapted for various purposes, from urban high-rises to remote work retreats. Adaptability, sustainability, efficiency, and central accessibility can influence future architectural designs, especially as work and living spaces evolve in response to global shifts toward remote working and environmentally conscious living.

This project is a step toward reimagining the possibilities of dynamic and responsive architecture. It offers a glimpse into a future where buildings not only exist within their environments but actively engage with them, enhancing the quality of life for their inhabitants. The links between this project and other design explorations will be elaborated on in upcoming discussions on my blog, where these ideas will converge to showcase a holistic vision of innovative, adaptable, and modular living spaces.

The Dynamic Rotating Floor Building, a visionary architectural concept, synthesizes cutting-edge engineering and thoughtful design tailored for adaptability and environmental responsiveness. As the architect behind this innovative idea, my journey through the design and conceptualization process was heavily supported by advanced technological interfaces, including AI tools, which were crucial in refining and actualizing the concept.

Engineering Specifications and Design Solutions

The challenge of creating a building where each floor can rotate independently requires meticulous engineering planning and innovative solutions. Here are the key specifications and technologies that made this design feasible:

  1. Structural Integrity and Support Systems: The building’s core, a solid, static column, is constructed from high-strength reinforced concrete designed to support the weight of the rotating floors. This core houses the elevator shafts and all primary utilities, maintaining structural integrity while providing necessary services to each floor.
  2. Rotational Mechanism: Each floor has a precision-engineered rotational bearing system similar to those used in large-scale turntables and rotating restaurants. These systems are designed to handle significant loads, ensuring smooth and quiet operation. The choice of bearings and the design of the interface between the rotating floors and the static core were optimized using simulations facilitated by AI, which helped predict stress points and maximize material distribution.
  3. Utility Management: To address the challenge of delivering water, electricity, and waste management services to rotating floors, a dynamic utility conduit system was developed. This system uses flexible, durable connections that rotate along the floors without risking disconnections or leaks. These conduits are routed through the central core and connect to each floor at single or multiple points, ensuring that utilities can be safely and reliably distributed regardless of the floor’s orientation.
  4. Smart Control Systems: Integrating innovative building technology was crucial for allowing residents to control the rotation of their floors. Using a user-friendly interface developed with AI, residents can set preferences for sunlight exposure and views and even program automatic adjustments based on weather conditions. This system uses sensors to monitor external environmental factors such as wind speed, sunlight, and temperature, adjusting the building’s rotation to optimize energy efficiency and comfort.

When thoughtfully integrated, these patterns could significantly enhance the Dynamic Rotating Floor Building’s usability, aesthetic appeal, and environmental harmony. Each pattern addresses specific architectural needs and contributes to a holistic living environment that adapts to its inhabitants and surroundings.

Collaborative Process with AI

My interaction with AI platforms significantly enhanced the development of the Dynamic Rotating Floor Building, particularly in simulation, design refinement, and problem-solving. These tools provided invaluable feedback on structural dynamics, material efficiency, and environmental impact, informing many design decisions. The design started by uploading a quickly drawn sketch with key questions for ChatGPT as follows:

See also  YouTube AI Music Tool with API, the future of Music & Content with AI and APIs?

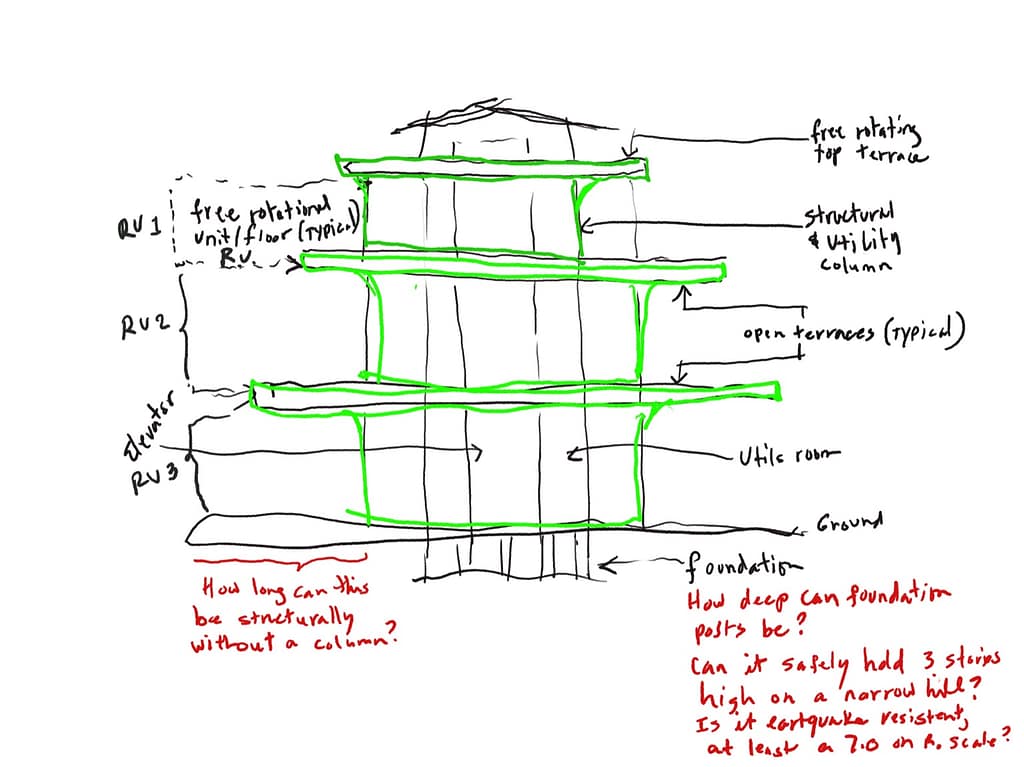

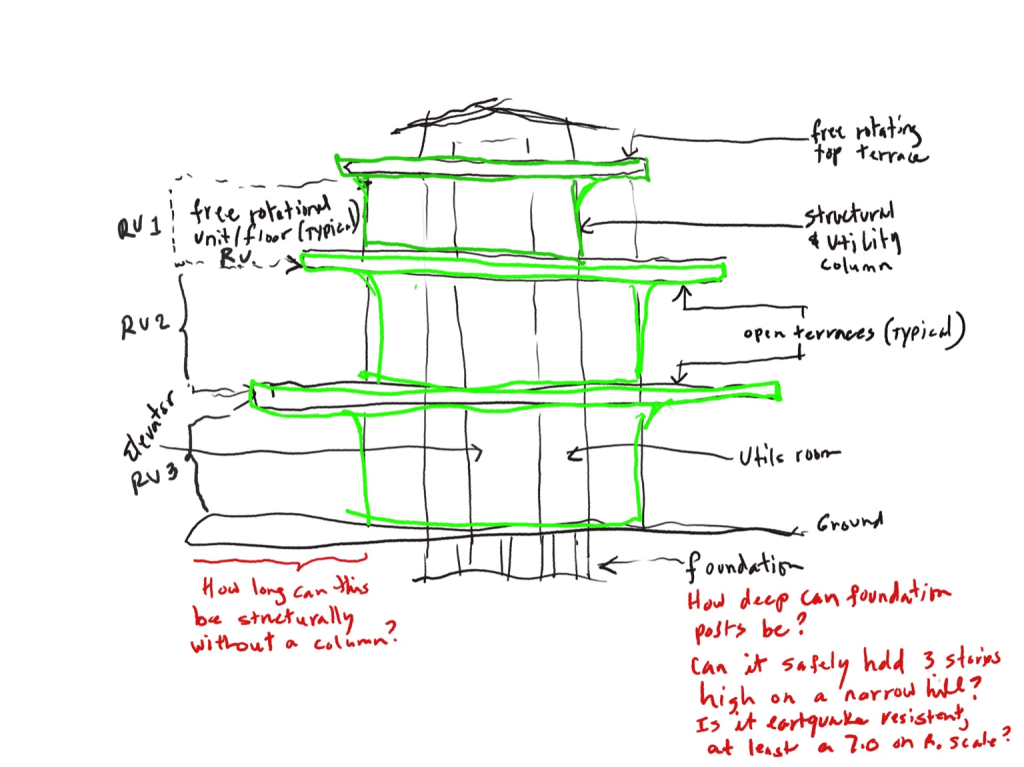

initial sketch

ChatGPT 4o (Omni) understood everything in the notes on the sketch and answered the questions I wrote in red. This is standard practice moving forward, but you need to write clever prompts and provide well-planned visual clues. Here is the prompt I wrote:

Please review the attached image; it represents a building design that functionally emulates a lazy Susan. It allows each floor to move independently and rotates around a middle hollow column. This column contains the elevator or stairs and feeds the utility services, including waste, water, and electricity. The green color defines an individual floor. The red color represents questions for you. Notice that each terrace is attached to a floor unit. The idea is to change views to the outside without disconnecting utilities. It also allows you to take advantage of seasonal weather changes to save energy, get more lighting, etc. As you finish the analysis, please identify other further advantages and disadvantages.

And here is what it produced –with minor editorial changes for readability:

It looks like you have a conceptual building design that uses a central structural and utility column, around which each floor can rotate independently, similar to a lazy Susan. This is a fascinating and innovative architectural idea. Let’s address your questions and then discuss additional advantages and potential disadvantages.

Analysis of Your Questions

  1. Column-free Span: The span achieved without additional support columns depends on the materials used and the engineering design. Modern engineering and materials like reinforced concrete or steel can span quite long distances. Still, each rotating floor’s specific load, the utilities’ weight, and the external forces (like wind) need careful analysis. Depending on these factors, a typical span without intermediate support could be up to 40-50 feet.
  2. Foundation Depth: The depth of foundation piers depends on soil type, the load of the structure, and local building regulations. For a three-story building on unstable or steep terrain, deeper foundations are generally required to anchor the structure safely. Depths could range from a few feet in stable, hard rock conditions to much deeper in loose or sandy soils.
  3. Safety and Earthquake Resistance: To be earthquake-resistant for a rating of at least 7.0 on the Richter scale, the building must be designed with flexible yet robust engineering principles. The central column needs to be extremely resilient and well-anchored to the foundation. The rotational mechanism must also allow for some movement without causing structural damage. Advanced damping and isolation techniques would be crucial.

Additional Advantages

  • Dynamic Views and Solar Exposure: Residents can rotate their units to change their views or optimize natural light exposure, enhancing living quality and reducing lighting energy consumption.
  • Customization of Living Experience: Allows residents to customize their environment according to personal preferences or special events, giving a unique adaptable living experience.
  • Wind and Environmental Adaptation: By rotating the floors, one could potentially minimize wind resistance during storms or maximize cross-ventilation during warmer seasons.

Potential Disadvantages

  • Complexity and Cost: The engineering required for such a structure is complex and would likely result in higher construction and maintenance costs compared to traditional buildings.
  • Mechanical Failures: The rotational mechanism could be prone to mechanical failures or require frequent maintenance to ensure smooth operation.
  • Emergency Evacuations: In emergencies, the rotating floors could pose challenges for evacuation efforts, especially if the rotation mechanism fails or if people are on different rotating floors.
  • Noise and Vibration: The operation of rotating floors might generate noise and vibrations that could be disruptive or uncomfortable for residents.

This concept is quite innovative and could represent a significant advancement in residential architecture, though it does come with notable challenges that would need careful planning and engineering to overcome.

ChatGPT 4o

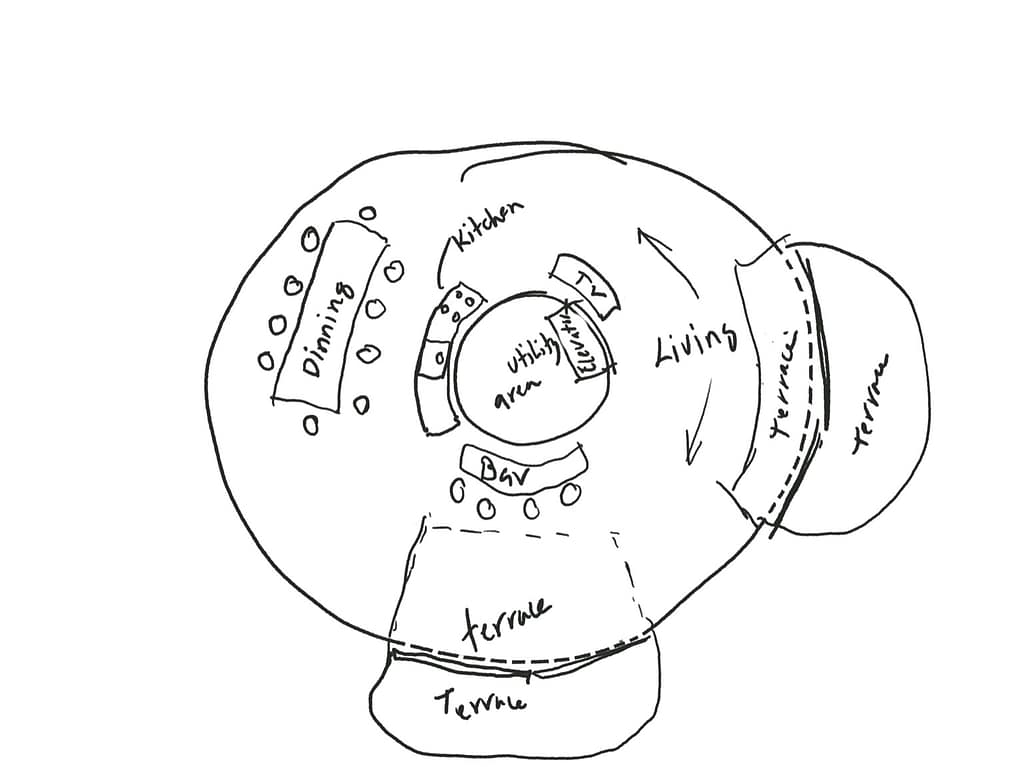

Circulation: ChatGPT struggled to produce a rendering for expressing the smooth transitions between different areas or rooms, so I upload another rough draft as follows:

    While it didn’t quite pick up the open concept, the dwelling areas, and the outside features of the terraces, it rendered something similar. While the AI does keep track of our exploration in the chat. Unfortunately, it quickly loses an aggregate design across renderings. Hence, I cannot recommend it for rendering your ideas:

    A blueprint for a fully open, single round floor plan based on the user's exact requirements, featuring no internal walls between zones. The layout includes a dining area, a kitchen, and a living area, all seamlessly integrated into one continuous, circular space. The central column is solid, serving solely for structural support and housing utilities like an elevator or stairs, completely enclosed and not visible from the interior spaces. The exterior is defined by sliding glass doors leading to terraces with diverse geometric flooring patterns. This design highlights simplicity, openness, and a strong indoor-outdoor connection, focusing on natural light and expansive views.

    It then lost the sense of the central service but included the protruding

    See also  What Is The Evolution Of AI-Powered Conversations And Games?

    Moving forward through a lengthy but productive design session, the AI and I optimized the building’s design to maximize natural heating, lighting, and cooling, reducing the need for artificial climate control and lighting as follows:

      Optimizing a building’s design to maximize natural heating, lighting, and cooling involves integrating several architectural strategies and technologies aimed at enhancing energy efficiency and occupant comfort. Here are key approaches and considerations:

      Orientation and Layout

      • Sun Path Consideration: Orient the building to take advantage of the sun’s path. Maximize south-facing windows in the northern hemisphere (and north-facing in the southern hemisphere) to enhance solar gain during winter, reducing heating requirements.
      • Compact Shape: Design the building with a compact form to minimize surface area exposed to the elements, reducing heat loss in winter and heat gain in summer.

      Window Design and Placement

      • Window Sizing and Placement: Strategically place and size windows to maximize daylight penetration and minimize overheating. Use larger windows on sun-facing sides and smaller, more insulated windows where less sun is needed.
      • High-Performance Glazing: Utilize double or triple-glazed windows with low-emissivity coatings to reduce heat transfer while allowing for maximum natural light.

      Building Materials and Insulation

      • Thermal Mass: Incorporate materials with high thermal mass, like concrete or brick, inside the building. These materials absorb heat during the day and release it slowly when temperatures drop, stabilizing indoor temperatures.
      • Insulation: Enhance insulation in walls, roofs, and floors to keep the desired temperature stable inside, reducing the need for heating and cooling.

      Natural Ventilation

      • Cross Ventilation: Design window and door placements to facilitate cross ventilation, which can effectively cool a building by drawing cooler outside air through it.
      • Stack Effect Ventilation: Utilize the stack effect by placing operable windows at both lower and higher levels, allowing warm air to rise and escape, drawing cooler air in from below.

      Shading and Overhangs

      • Fixed and Operable Shading Devices: Install shading devices such as overhangs, louvers, and pergolas that block high summer sun but allow lower winter sun to penetrate.
      • Vegetation and Green Roofs: Strategically place trees and vegetation to provide shade and cooling. Green roofs can also act as insulators and reduce the urban heat island effect.

      Integration of Renewable Energy

      • Solar Panels: Install photovoltaic panels to harness solar energy for electricity, reducing reliance on external power sources.
      • Solar Water Heating: Using solar collectors to heat water further reduces energy consumption.

      Smart Building Technologies

      • Automated Systems: Implement smart building systems that automatically adjust lighting, blinds, and HVAC based on occupancy, sun position, and temperature, maximizing efficiency.
      • Energy Management Systems: Use advanced energy management systems to monitor and control energy usage throughout the building, ensuring optimal performance.

      By combining these strategies, architects and builders can create buildings that reduce dependence on artificial climate control and lighting and promote a healthier and more sustainable living environment. This holistic approach to design improves the building’s performance and enhances the comfort and well-being of its occupants.

      ChatGPT 4o

      Future Integration

      As I continue to refine and expand upon the concept of the Dynamic Rotating Floor Building, the integration of AI and other technological innovations remains central to achieving a design that is not only architecturally sound but also revolutionary in its adaptability and sustainability. The ongoing dialogue with technology shapes the buildings we create and reflects a broader commitment to responsive and responsible architecture.

      In conclusion, while the Dynamic Rotating Floor Building is an architectural idea in progress, it is a testament to the power of integrating advanced technology with visionary architectural design to create truly adaptive spaces that align with their inhabitants’ needs. As this project progresses, its development and underlying technologies will be detailed further on my blog, providing insights into the future of dynamic, intelligent architecture.
